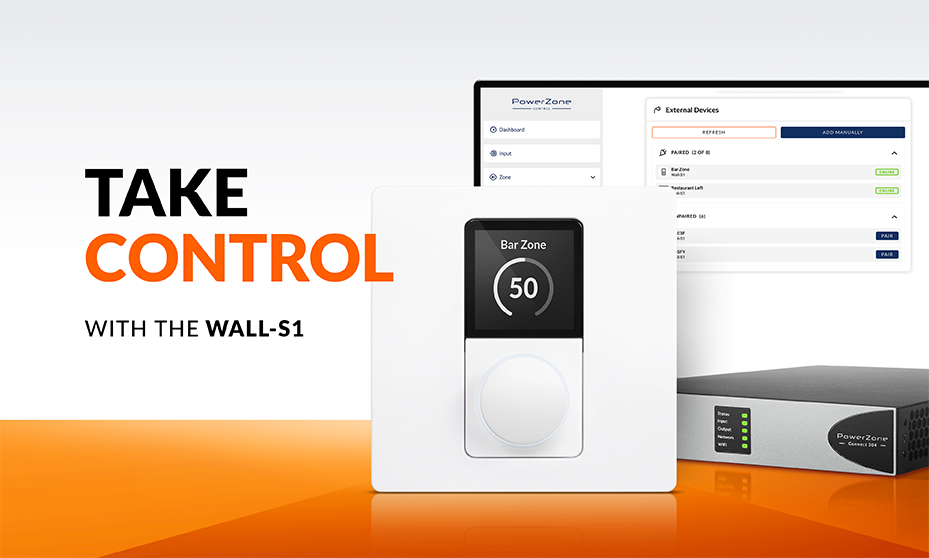

TAKE
CONTROL
with the WALL-S1
Volume
Quickly change volume or set min/max for each zone
Source
Easily select any input source
with a few clicks
Intuitive
Tactile control button and
clear on-screen menu
PoE Technology
Both power and networking
are trouble-free
PIN protection
Programmable PIN code to
manage user access
Danish Design
Touch-friendly surface and
invisible screws
Volume
Quickly change volume or set min/max for each zone
Source
Easily select any input source
with a few clicks
Intuitive
Tactile control button and
clear on-screen menu
PoE Technology
Both power and networking
are trouble-free
PIN protection
Programmable PIN code to
manage user access
Danish Design
Touch-friendly surface and
invisible screws
ZONE
CONTROL
SYSTEM
SYNCING
CONNECT MULTIPLE CONTROLLERS
PER SYSTEM AND ZONE
Installation Example
PowerZone Connect amplifiers can handle up to 8 Wall-S1 controllers, configured as you need, and customised to their location – this covers the majority of install projects.
With the placement of 5 x Wall-S1 controllers we cover the two different bars in this example.
⦿ Lounge Bar
⦿ Sports Bar
CONNECT, CONFIGURE
& CONTROL ANY LOCATION
PoE for network pairing and power
Smart PoE technology means straightforward pairing, and easy to assign to any sound zones and sync settings across the system
Easy 4-digit PIN code protection
Easy 4-digit PIN code protection with access settings for a secure install. So, a code can be required for advanced menu settings, only source & volume active or total lock
Customisable screen and backlight
Customisable settings for each controller and room – change colour of the on-screen menu, as well as the control button & screen backlight strength
CRYSTAL CLEAR DISPLAY
Light Scheme
Dark Scheme
Blue Scheme
Dark Orange Scheme
TAKE CONTROL
Wall-S1 Wall-Controller
Any PowerZone Connect amplifier can be controlled remotely with the
Wall-S1 wall-mounted PoE controller. It is simple to set-up, configure, and customize any installed system as well as any sound zone in a location.
With PIN code protection for system security and access, you can change source and manage volume in a matter of seconds.
Up to 8 controllers can be connected to any of the zones in the amplifier’s web app. Wall-S1 can be assigned to any zone – example two controllers to each of the four zones, or just one zone with eight sync’d devices. This is effortlessly managed in the PowerZone Control web app where you find many more helpful features.
- PowerZone Connect can manage up to 8 x Wall-S1 controllers, configured exactly as you need, covering the majority of installs
- Each networked, PoE controller is easily allocated to any sound zone in the amplifier’s web app and customised for that location
- Change input source or adjust the volume in a sound zone in seconds, by following the clear on-screen menu
- Programmable PIN code protection for both basic and advanced access, including system shut-down when leaving the location
Control Button – Push, Hold, Rotate
LCD Screen – 240 x 240 px in full RGB
Mounting holes – fits standard electrical boxes
PoE Connection – connection and power in-one
LCD Screen – 240 x 240 px in full RGB
Control Button – Push, Hold, Rotate
Mounting holes – fits standard electrical boxes
PoE Connection – connection and power in-one
For more information, download our Product Brochure.
Model Specifications
 |
 |
 |
 |
|
| Model | W-EU | B-EU | W-US | B-US |
| Amplifier Compatibility | PowerZone Connect series | |||
| Colour | White (RAL9003) |
Black (RAL9005) |
White (RAL9003) |
Black (RAL9005) |
| External Dimensions (H x W) | 86.79 x 86.79 mm (3.42 x 3.42 in) |
115.1 x 70.6 mm (4.53 x 2.78 in) |
||
| Weight | 120g (4.2oz.) | 120g (4.2oz.) | ||
| Maximum Cable Length (CAT 5e) | 100m (328ft) | |||
| Power Consumption | PoE Class 1 / 3.84 W max | |||
| Power Supply | Power to the RJ45 ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector | |||
