PowerZone™ 1004

SKU UBX-888-003 Category Tags , ,

1000 W non-networked Class-D amplifier with 4 channels

Features

  • Compact 1U form factor.
  • Hybrid power distribution in both Lo-Z and Hi-Z.
  • Powered by Pascal UMAC™ Class-D technology.
  • Eight-position DIP switch for operational configuration, including locking front panel gain control.
  • GPIO interface for remote volume and standby.
  • ErP and Energy Star compliant.
  • UL listed audio equipment.

Specifications

Additional information

Total System Power

1000 W

Output Power @ 4/8Ω

4 x 250 W

Output Power @ 70/100V*

4 x 250 W

Powershare (up to) Across all channels**

N/A

Power Consumption

300W

Dimensions

44.5 x 440 x 292 mm
(1.75 x 17.32 x 11.50 in)

Weight

3.6 kg (7.9 lbs)

Output Voltage

45Vrms (S.E) – 70/100V (Hi-Z)

Description

PowerZone™ is a series of non-networked Class-D installation amplifiers engineered for professionals who demand affordable, reliable, high-performance audio power.

Key features include flexible configuration options that allow each output channel to be independently set to drive either Lo-Z or Hi-Z loads, enabling you to tailor your system to drive both types of loudspeakers from a single unit. Additionally, the PowerZone™ series’ power-sharing technology (exclusive to the 252 and 504 models) intelligently distributes the total available power across channels, ensuring optimal performance and reliability.

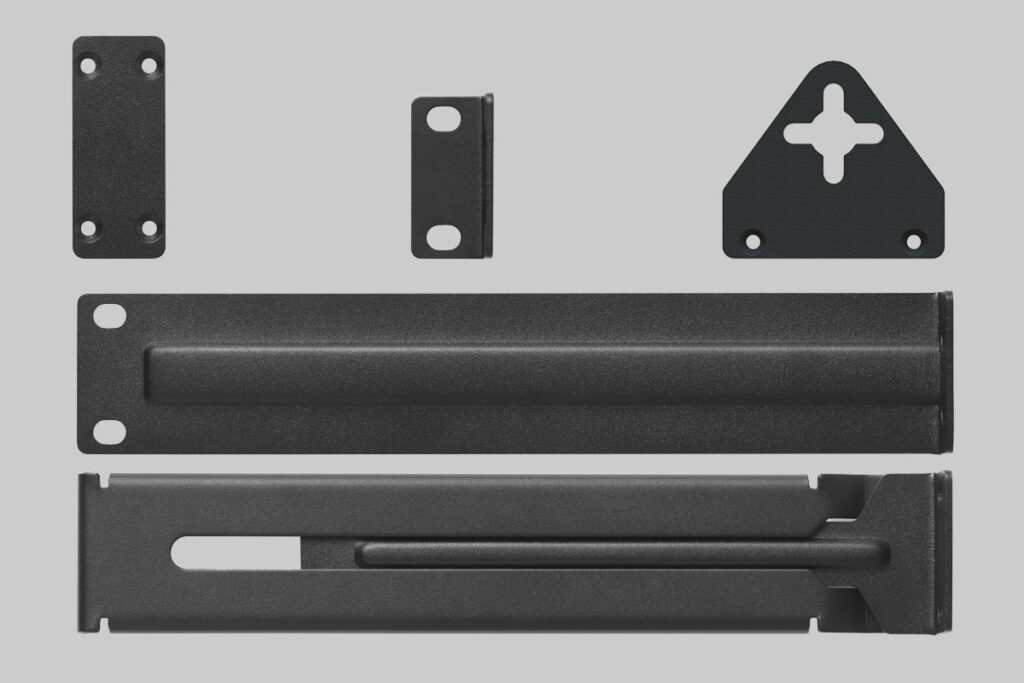

With full rack support and adaptable desk and wall mount brackets, the PowerZone™ series offers unparalleled installation versatility in a compact form factor that seamlessly fits into spaces where other amplifiers may fall short.

Like all PowerZone products from Blaze Audio, these amplifiers come with a 5- year warranty.
