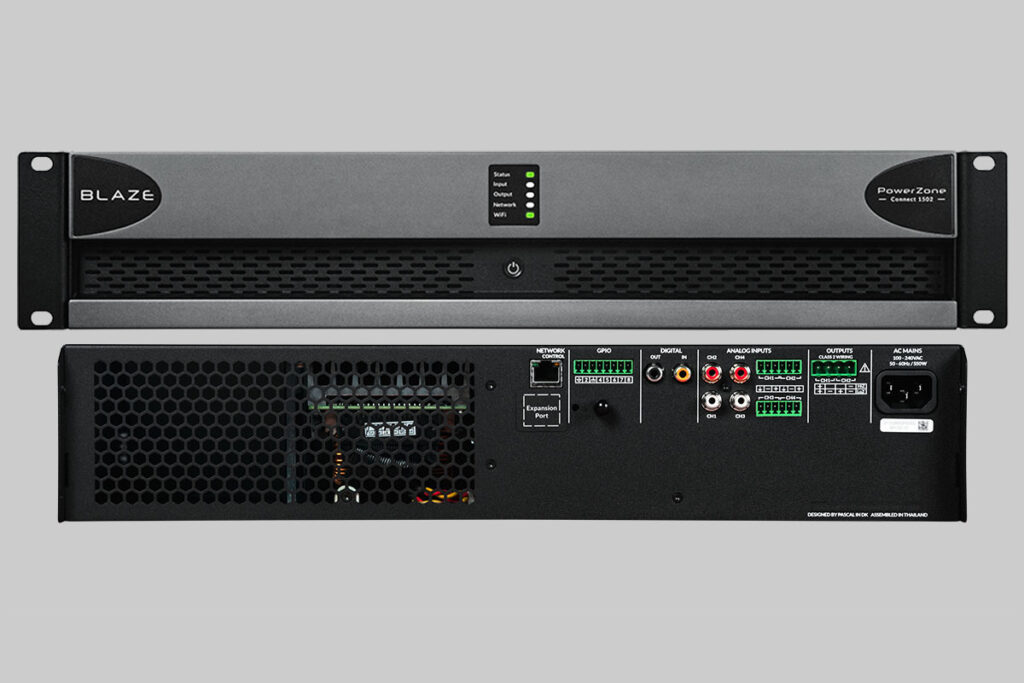

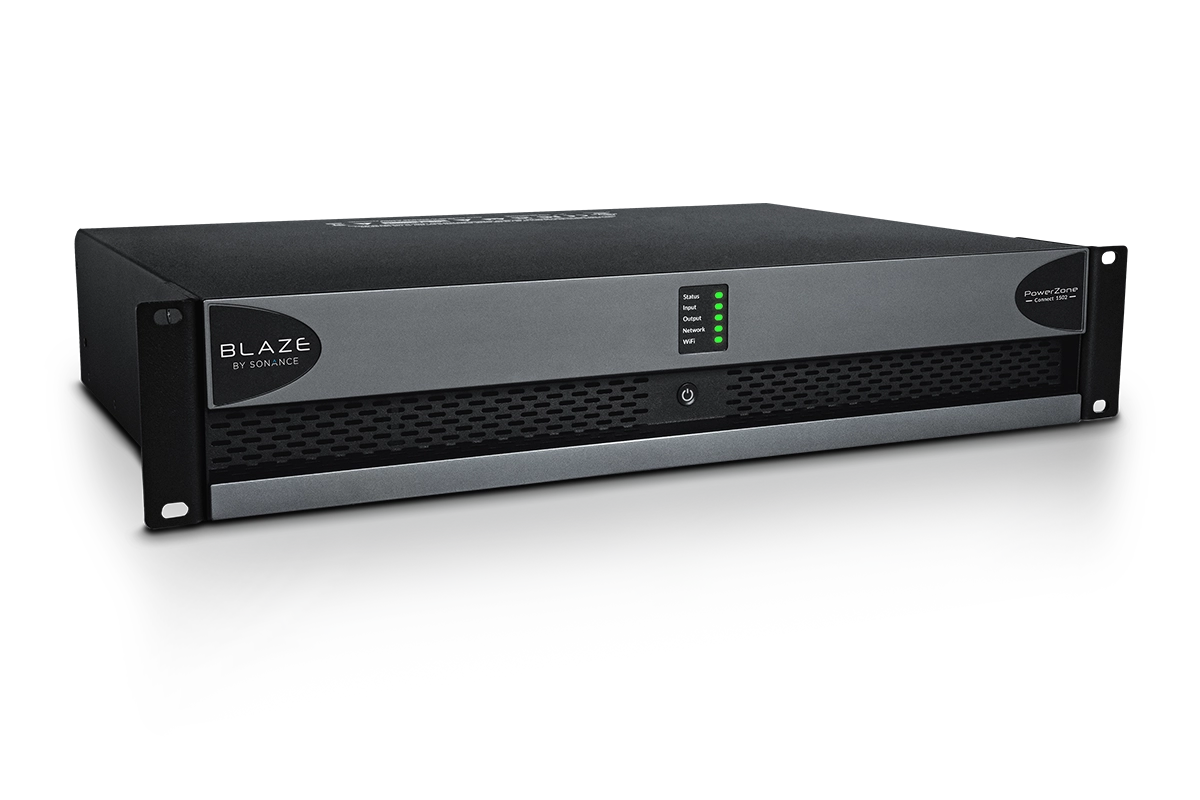

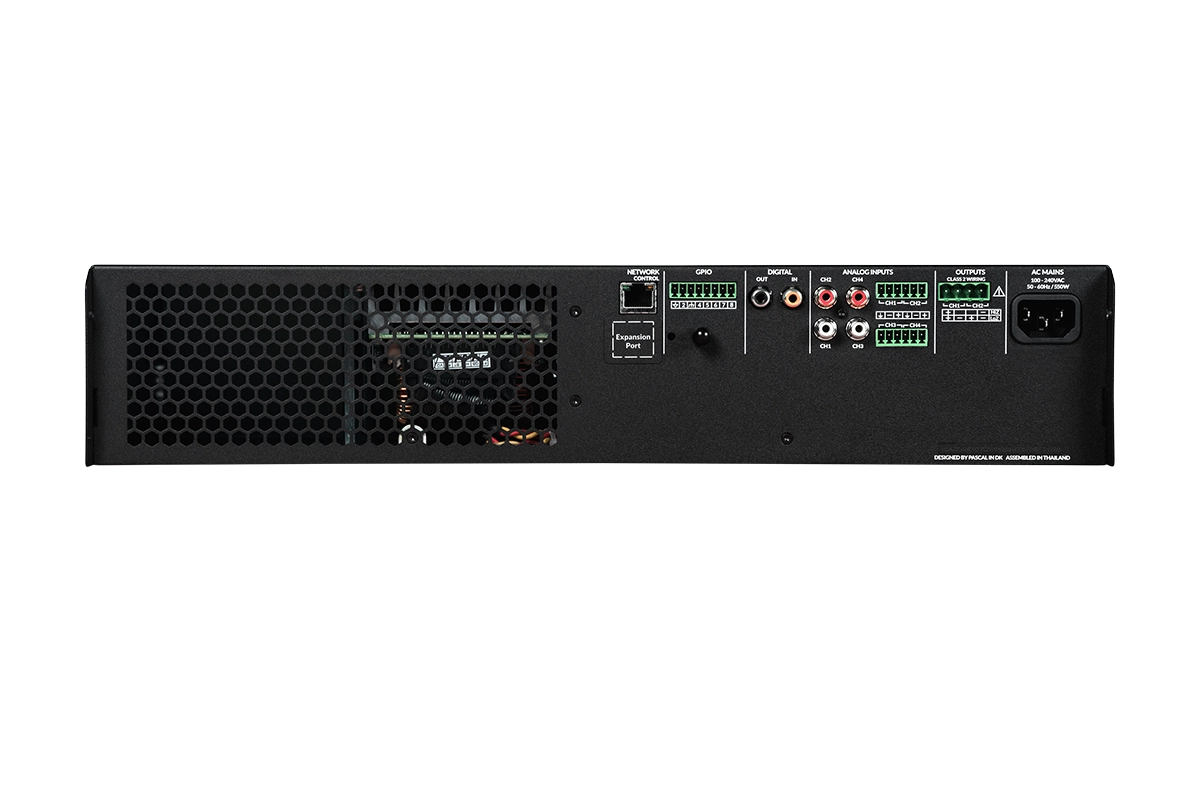

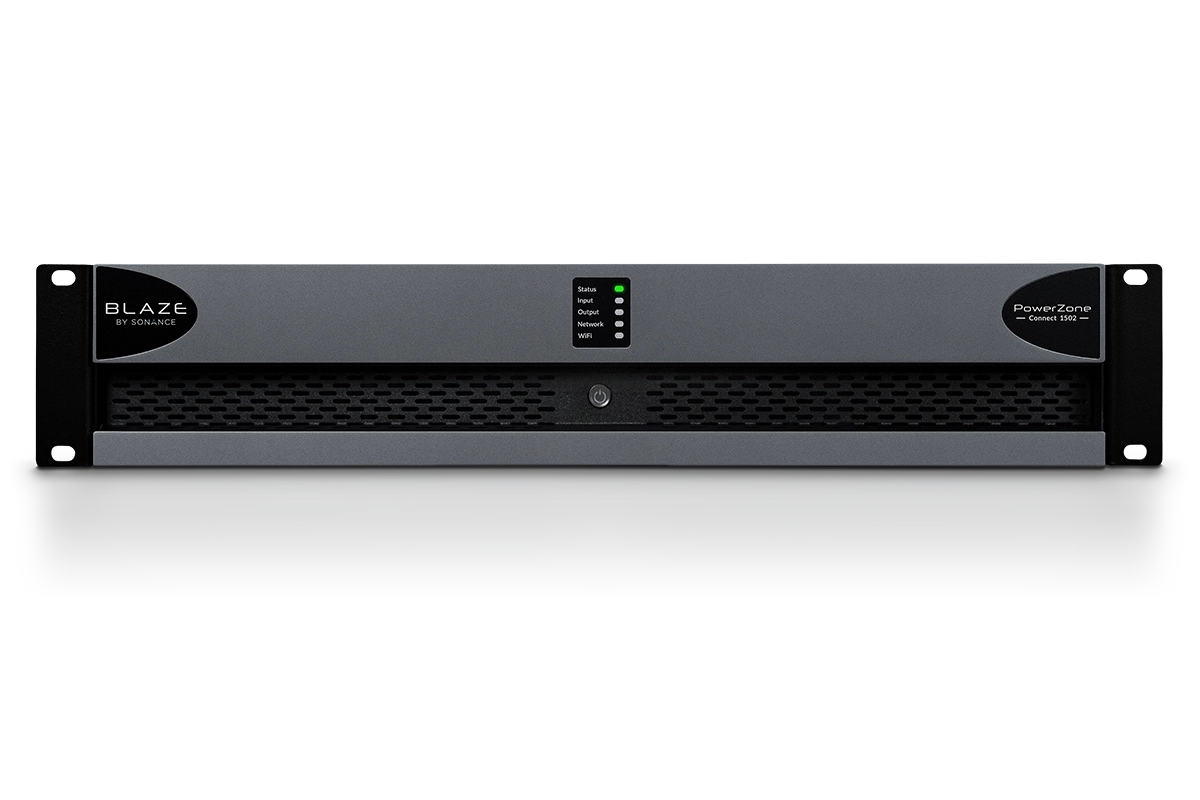

PowerZone™ Connect 1502

SKU LBX-888-002 Category Amplifiers Tags 2u, dsp, powerzone connect, Product Template 2025

1500 W DSP-enabled Class-D amplifier with 2 channels

Features

Full rack 2U form factor
Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC™ Class-D technology
UREC™ universal power supply with PFC
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant
UL listed audio equipment
5 Year warranty

Specifications

Additional information

Total System Power	1500 W
Output Power @ 2Ω	2 x 750 W (SE)*
Output Power @ 4Ω	2 x 750 W (SE) 1 x 1500 W (BTL)**
Output Power @ 8Ω	2 x 400 W (SE) 1 x 1500 W (BTL)
Output Power @ 70V	1 x 1200 W (BTL)
Output Power @ 100V	1 x 1500 W (BTL)
Power Consumption	350 W
Dimensions	88 x 440 x 332 mm 3.5 x 17.3 x 13.1 in
Weight	5.9 kg
Operating temperature	0-40° C

Downloads

Description

The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W.

The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes.

Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup.

PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

"This is a DSP with a super friendly UI! I was able to access the DSP and get things set up in minutes. The UI is easy enough for anyone to get things going quickly, but allows for advanced control that's just as accessible."

"PowerZone Control DSP is powerful enough to compete with the best, flexible enough for any application, and simple enough to immediately understand."

"PowerZone Connect amplifiers are my go-to amplifiers. Not only is the DSP super simple to navigate, it is extremely powerful. The fact that I can easily connect to the DSP with a web browser makes setup fast and easy."
