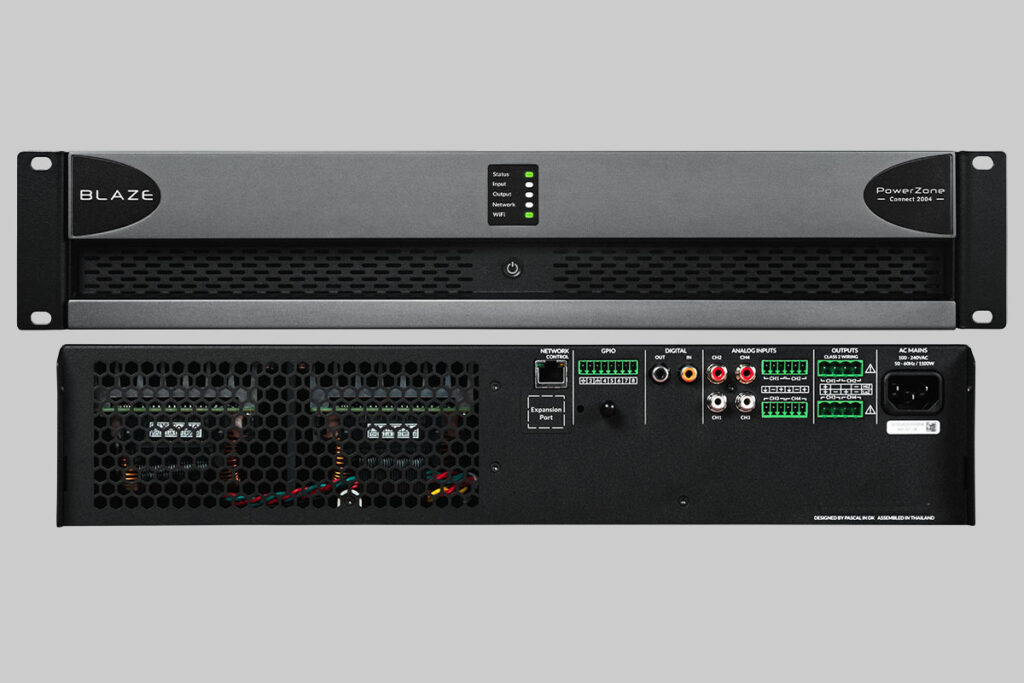

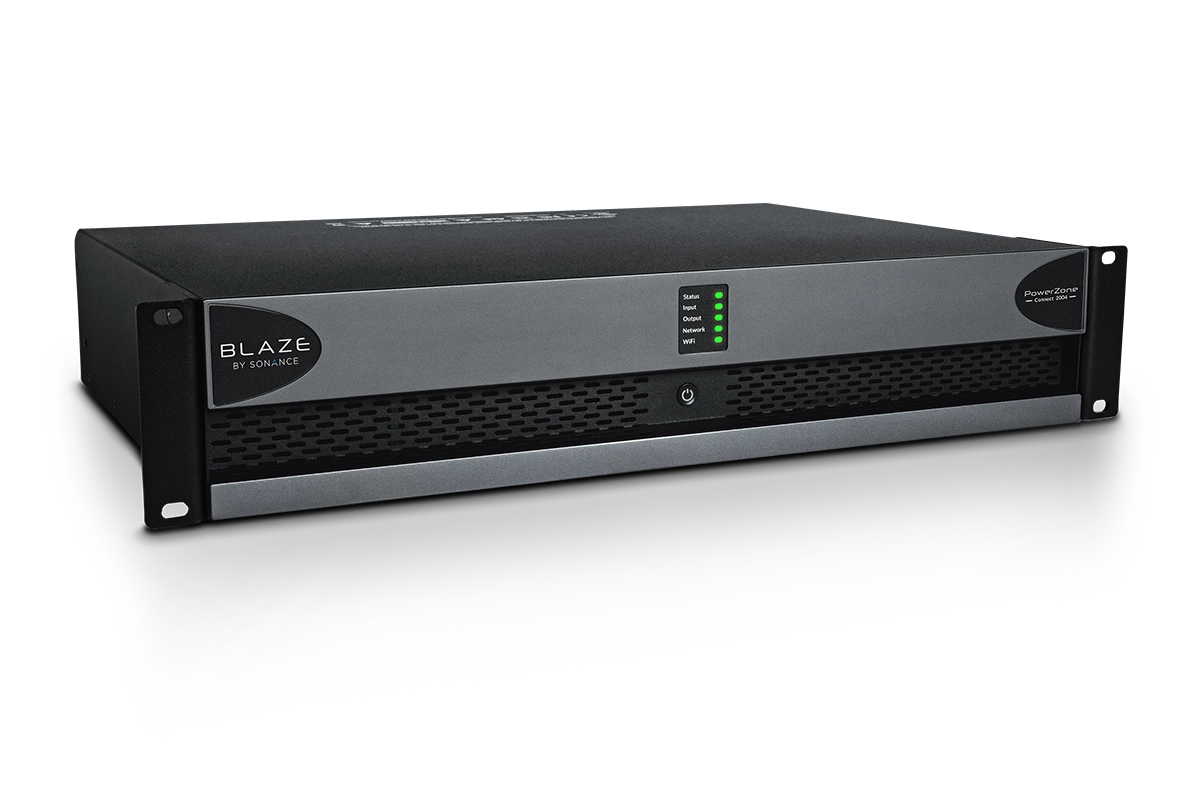

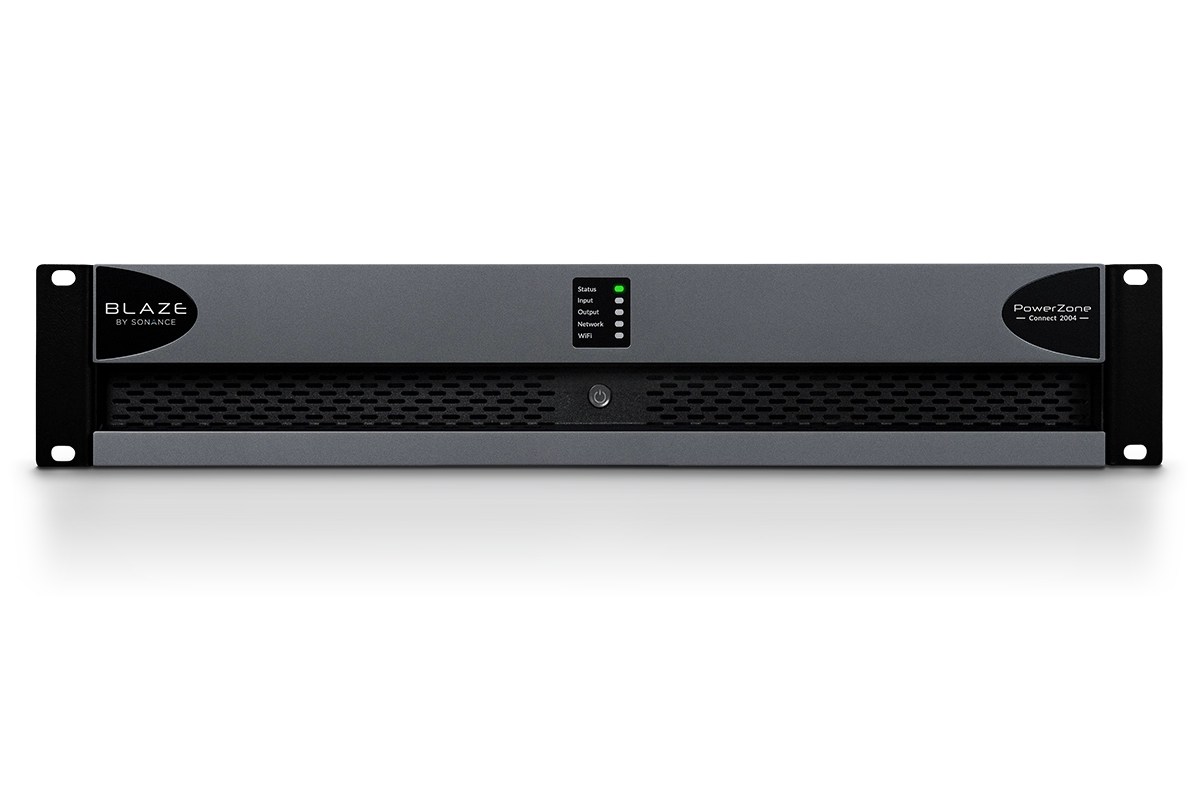

2000 W DSP-enabled Class-D amplifier with 4 channels
| Output Power @ 2 Ω | 4 x 500 W (SE)* |
| Output Power @ 4 Ω | 4 x 500 W (SE) 2 x 1000 W (BTL)** |
| Output Power @ 8 Ω | 4 x 250 W (SE) 2 x 1000 W (BTL) |
| Output Power @ 70 V | 2 x 1000 W (BTL) |
| Output Power @ 100 V | 2 x 1000 W (BTL) |
| Total System Power | 2000 W |
| Power Consumption | 700 W |
| Dimensions | 88 x 440 x 332 mm 3.5 x 17.3 x 13.1 in |
| Weight | 7.4 kg |

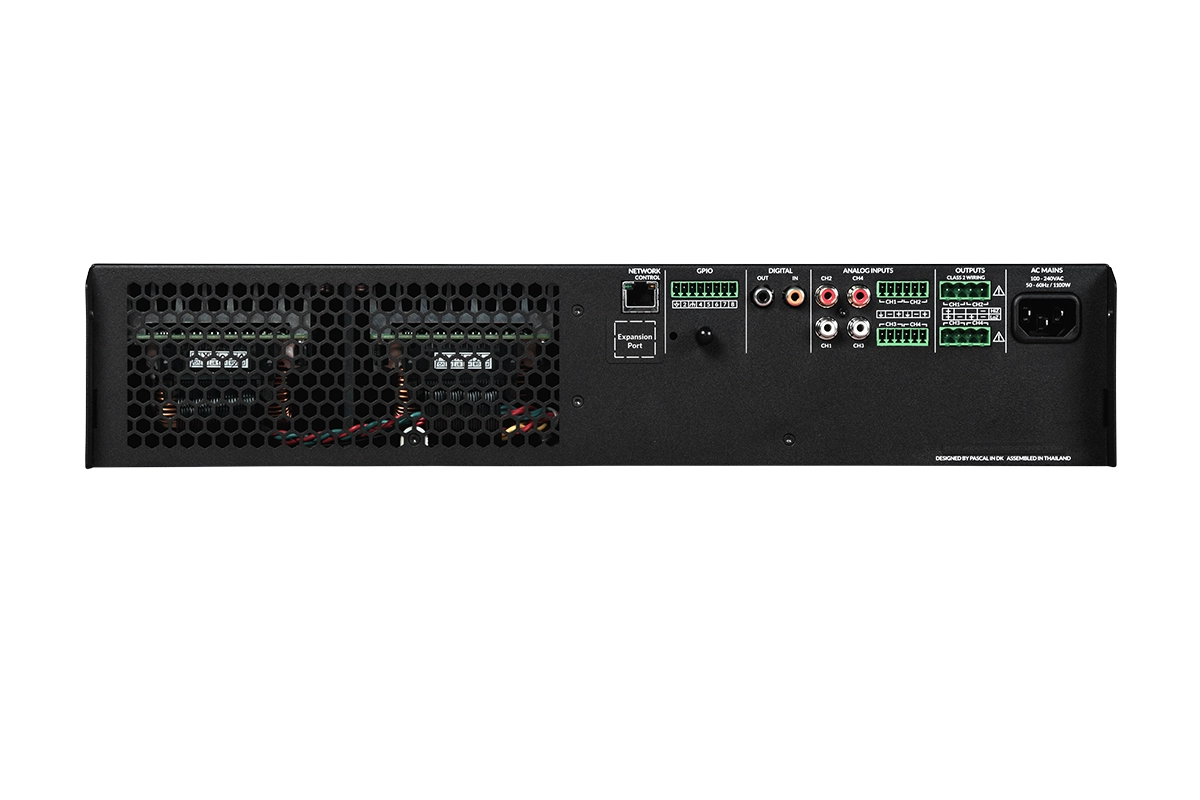

RJ45 connection Direct Network access (Ethernet)
GPIO Connections External control & monitoring
Wi-Fi antenna
S/PDIF digital input/output
4 x Unbalanced RCA input
4 x Balanced inputs
4 x Lo-Z outputs or 2 x Hi-Z outputs
Mains Power IEC 90-268 Vac input
The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W. The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes. Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.
Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
| Total System Power | 2000 W |
|---|---|
| Output Power @ 2Ω | 4 x 500 W (SE)* |
| Output Power @ 4Ω | 4 x 500 W (SE) |
| Output Power @ 8Ω | 4 x 250 W (SE) |
| Output Power @ 70V | 2 x 1000 W (BTL) |
| Output Power @ 100V | 2 x 1000 W (BTL) |
| Power Consumption | 700 W |
| Dimensions | 88 x 440 x 332 mm |
| Weight | 7.4 kg |
| Operating temperature | 0-40° C |
The S/PDIF is a 2-channel output that can be used to send either a fixed line-source (2 mono or 1 stereo) out to another amplifier or one or two mixers, or expand a zone with extra amplifiers using a variable S/PDIF lineout signal that follows a stereo zone (or two mono zones).
The S/PDIF is normally used to expand a “zone” with more amplifiers if more power is needed. Up to 4 amplifiers can be linked together. Signal loss can occur if more amps are connected. (Use 75-ohm signal cable as described in the manual)
Yes, when 100-volt outputs are wanted in the web GUI, two output channels are used to achieve High-Z. (see the manual and on the back of the amplifier, how to connect the speaker cables)
The software (Firmware) is already inside the amplifier. Just connect to the amplifier using a web browser (see IP address in the manual), and the configuration can start from any device that has a browser.
The end-user can control the zone volume (gain) via the Wall-S1 wall controller. The installer can use the intuitive installation web app to adjust all input and output gains, set the input sensitivity, and adjust the gain/trim for every input/output.
