Wall-S1 US

Single Zone PoE powered wall-controller

Features

  • Danish-designed, high-performance polymer material with a touch-friendly matte finish and concealed screws
  • Available in EU and US versions, standard white RAL9003 and black RAL9005
  • 4 color screen schemes, 4 brightness and 4 button backlight options
  • Instant network pairing and configuration for up to 8 Wall-S1 controllers with each PowerZone™ Connect amplifier
  • Optional 4-digit PIN code protection
  • Works with PowerZone™ Connect amplifiers

Specifications

Additional information

Amplifier Compatibility

PowerZone™ Connect series

External Dimensions (H x W)

86.79 x 86.79 mm<br>
3.42 x 3.42 in

Weight

120g, 4.2oz.

Maximum Cable Length (CAT 5e)

100m, 328ft

Power Consumption

PoE Class 1 / 3.84 W max

Power Supply

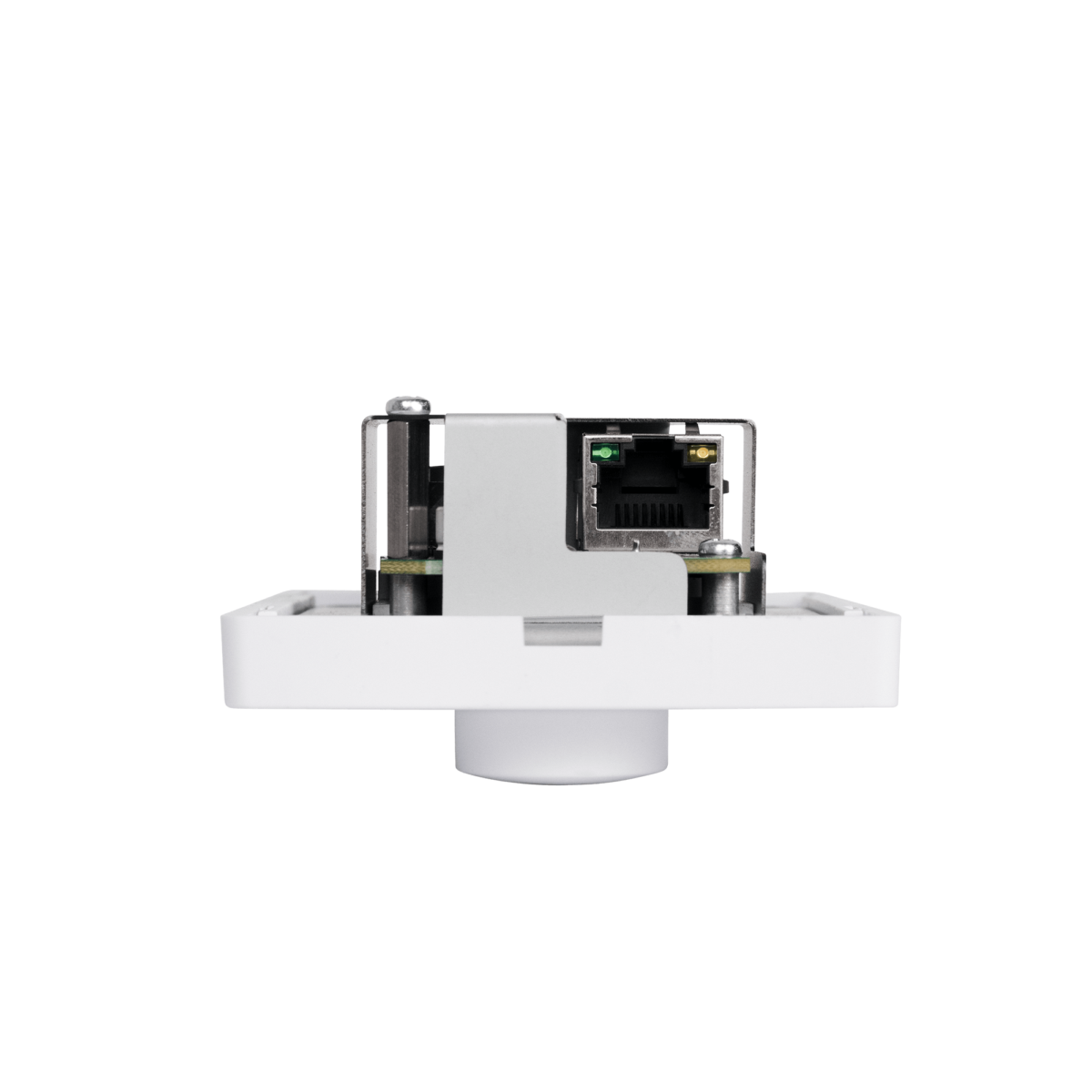

Power to the RJ45 ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector

Colour

Black, White

Description

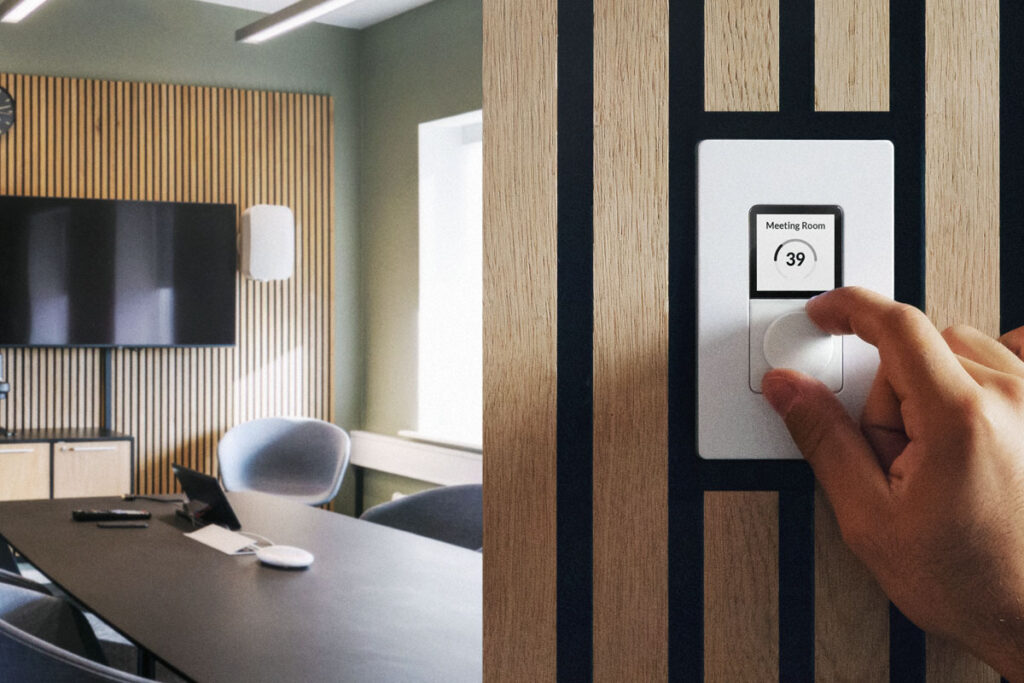

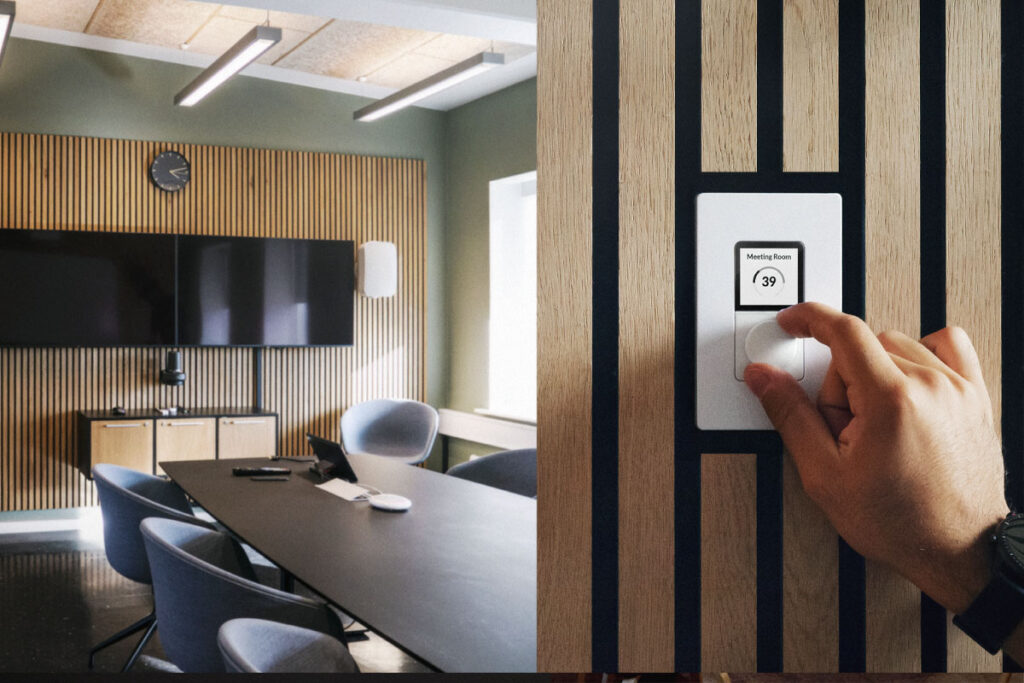

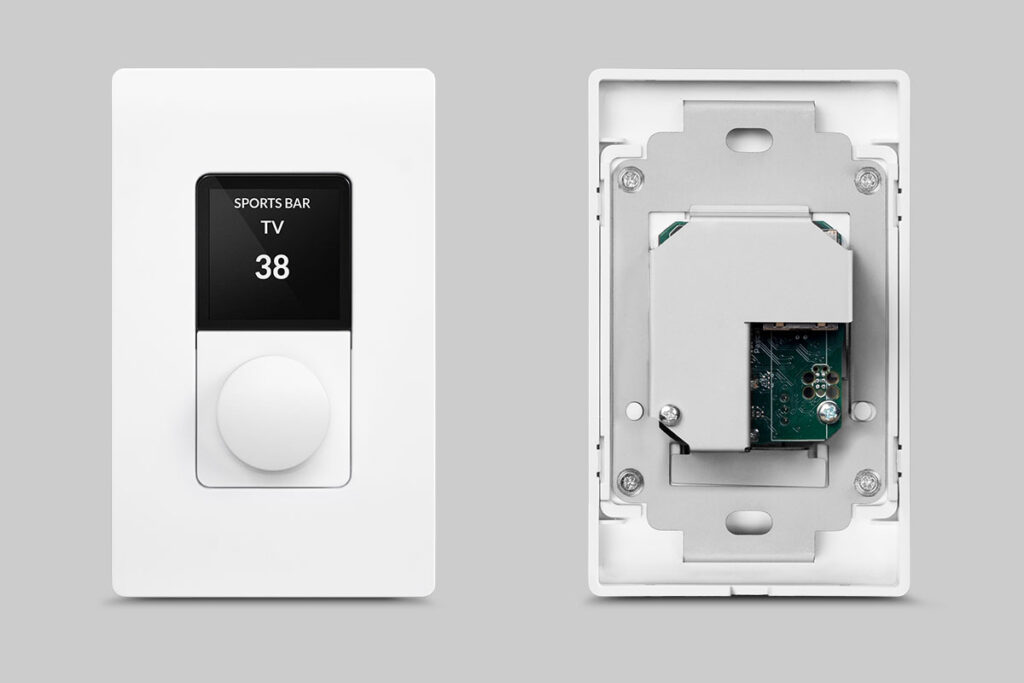

The Wall-S1 is a wall-mounted, networked PoE controller designed for remote control of any Blaze Audio PowerZone™ Connect amplifier. It provides end-users with control over input source and volume, while allowing system installers to configure and customize advanced features and settings through the amplifier’s DSP to meet specific site requirements.

It is easy to set up, configure, and customize for any installed system or sound zone. With support for pairing up to 8 Wall-S1 controllers per PowerZone™ Connect amplifier and assigning them to configured audio zones, installers can efficiently deploy systems using this networked controller.

Features include real-time zone syncing, PIN code protection for system security and access, and customizable color screens, allowing for tailored control across various locations.
