Passive, shallow on-wall subwoofer
Features
Specifications
| Sensitivity, 2,83 V/1 m | 95 dB |
|---|---|
| Maximum SPL, long term | 120 dB |
| Maximum SPL, peak | 126 dB |
| Frequency response | 45-600 Hz |
| Nominal impedance | 8 Ω |
| Ingress Protection | Indoor use only |
| Recommended amplifier | 300-600 W into 8 Ω |
| Measurements | 649 x 445 x 220 mm <br> 25.55 x 17.58 x 8.66 in <br>with wall mount |
| Finish | Painted 18 mm MDF cabinet |
| Weight | 22,25 kg, 49.05 lb |
| Colour | Black, White |
Description

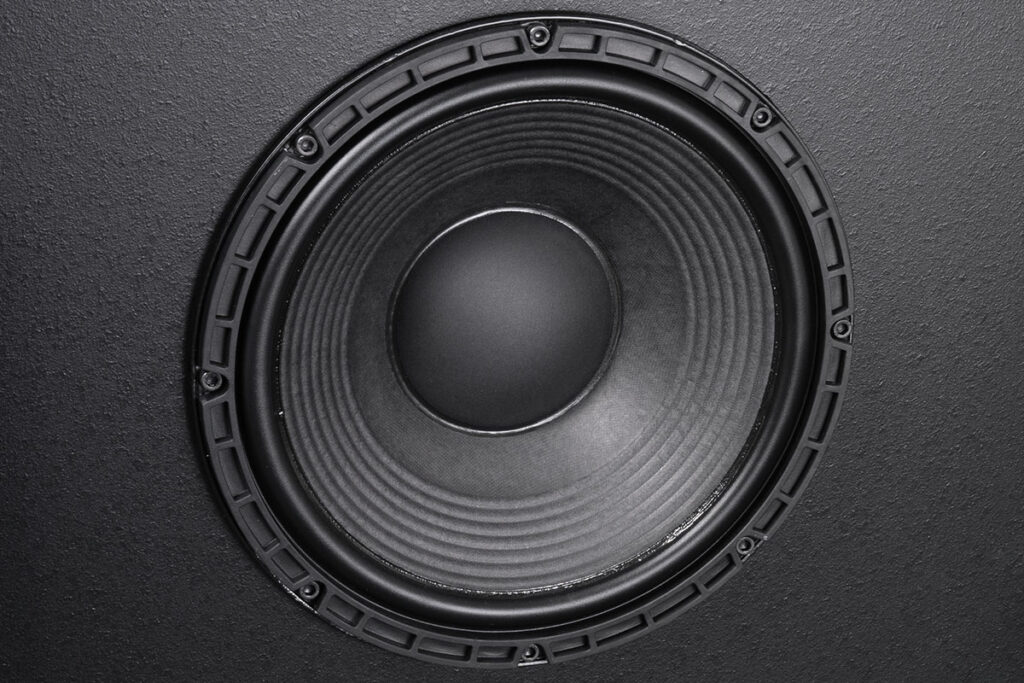

C12S is a shallow subwoofer with solid output. It is designed for applications where strong output is needed in a discreet form factor. Designed for medium SPL applications, the MDF cabinet features an advanced 12″ woofer with a very efficient motor design and a carbon fiber-reinforced cone. The 75mm voice coil employs a high-strength fiberglass former with windings both on the outer and inner surfaces of the coil. The result is a balanced voice coil with a uniform drive and very low distortion.

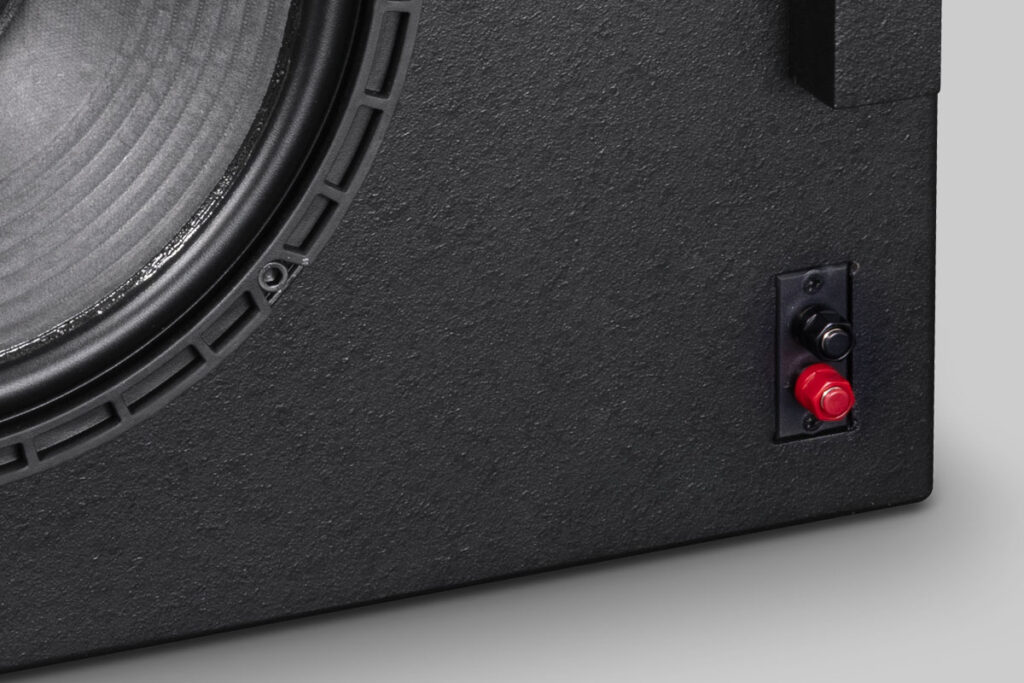

Cooling channels in the chassis ensure low power compression and excellent dynamics. The cabinet can hang on the wall or stand on the floor, with the subwoofer being protected from the surroundings. Cables are connected to the screw terminal, allowing for up to 4 sq. mm cable thickness, which can be recessed from the loudspeakers backside into the front of the cabinet.
C12S is available in black and white and is a powerful yet discreet subwoofer, and is designed to be used together with our Ci and CBL series loudspeakers.
