Passive, 2-way, full-range loudspeaker w/. medium output
| Sensitivity SPL / 1W @ 1m: | 86 dB |
| Maximum SPL, Long Term: | 105 dB |
| Maximum SPL, Peak: | 111 dB |
| Frequency response: | 60-20.000 Hz |
| Nominal impedance: | 8 Ω |
| Dispersion: | 100° vertical / 100° horizontal |
| Ingress Protection: | IP65 |
| Recommended amplifier | 30-60 W |
| Measurements: | 400 x 190 x 145 mm 15.75 x 7.48 x 5.71 in |
| Weight: | 2,7 kg 5.95 lb |
Switchable limiting circuit for tweeter
Screw terminal. Contacts will accept up to 4 sq. mm wire with an outside cable diameter of up to 20 mm.
1" silk dome tweeter.
Ci4 is a feature packed compact 2-way full-range loudspeaker with medium output. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few loudspeakers, which makes the Ci4 especially suited for in-door and outdoor commercial installations. It features an advanced passive woofer design which enables the compact cabinet to deliver full-range bass.

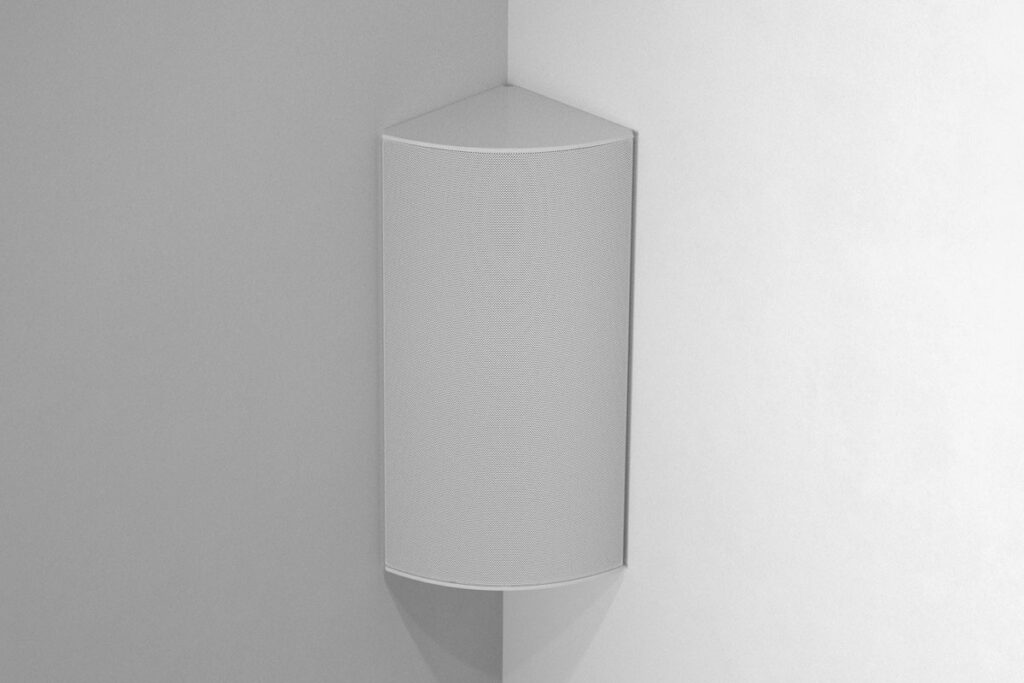

The patented triangular cabinet features integrated mounting points, allowing it to be flush-mounted in corners or onto walls and ceilings without the need for brackets. Additionally, with our new slider system, installation becomes a flexible and easy one-person task
Cabinets can be coupled together to increase coverage to 180° or 270° degree. The cable connection is invisible both in vertical and horizontal applications and the tweeter features a switchable protection circuit for added safety.

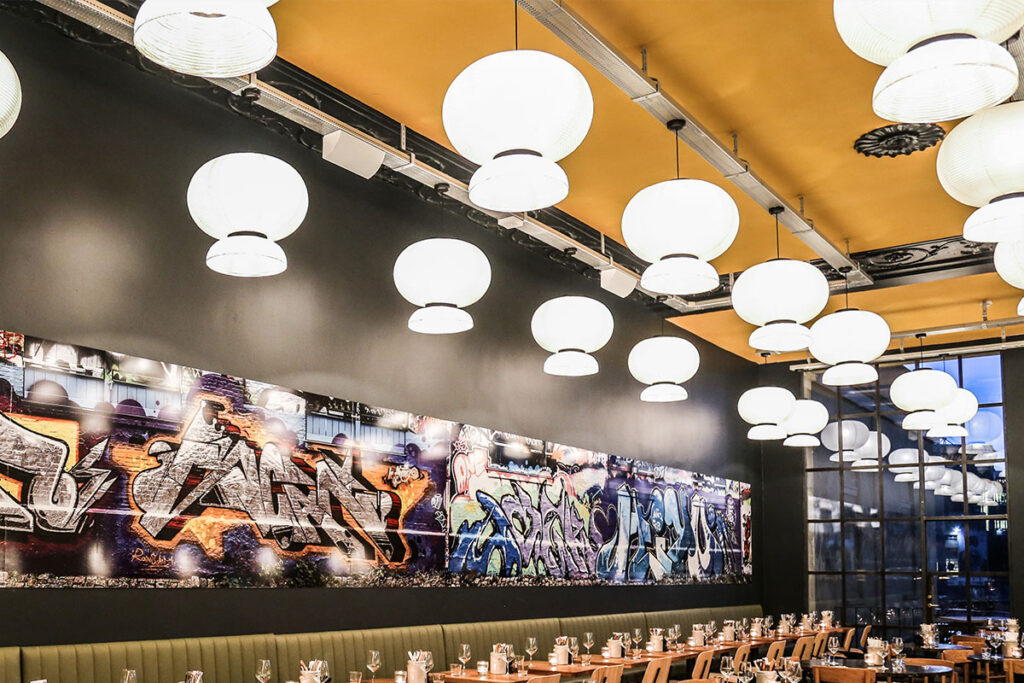

Ci4 is the perfect aesthetic loudspeaker solution for background sound in commercial installations such as cafes, hotels and retail shops.
For enhanced bass performance, the Ci4 can be teamed indoors with our C8S and C12S subwoofers.
| Sensitivity, 2,83 V/1 m | 86 dB |
|---|---|
| Maximum SPL, long term | 105 dB |
| Maximum SPL, peak | 111 dB |
| Frequency response | 60-20.000 Hz |
| Nominal impedance | 8 Ω |
| Dispersion | 100° vertical / 100° horizontal |
| Ingress Protection | IP65 |
| Recommended amplifier | 30-80 W |
| Measurements | 450 x 209 x 150 mm <br>17.72 x 8.23 x 5.91 in |
| Weight | 2,7 kg, 5.95 lb |
| Colour | Black, White |
| Sensitivity SPL / 1W @ 1m: | 84 dB |
| Maximum SPL, Long Term: | 99 dB |
| Maximum SPL, Peak: | 105 dB |
| Frequency response: | 140-20.000 Hz |
| Nominal impedance: | 8 Ω |
| Dispersion: | 100° vertical / 100° horizontal |
| Ingress Protection: | IP64 |
| Recommended amplifier: | 15-30 W |
| Measurements: | 181 x 135 x 102 mm 7.13 x 5.32 x 4.02 in |
| Weight: | 0,75 kg 1.65 lb |
| Sensitivity SPL / 1W @ 1m: | 86 dB |
| Maximum SPL, Long Term: | 105 dB |
| Maximum SPL, Peak: | 111 dB |
| Frequency response: | 60-20.000 Hz |
| Nominal impedance: | 8 Ω |
| Dispersion: | 100° vertical / 100° horizontal |
| Ingress Protection: | IP65 |
| Recommended amplifier | 30-60 W |
| Measurements: | 400 x 190 x 145 mm 15.75 x 7.48 x 5.71 in |
| Weight: | 2,7 kg 5.95 lb |
| Sensitivity SPL / 1W @ 1m: | 86 dB |
| Maximum SPL, Long Term: | 105 dB |
| Maximum SPL, Peak: | 111 dB |
| Frequency response: | 60-20.000 Hz |
| Nominal impedance: | 8 Ω |
| Dispersion: | 100° vertical / 100° horizontal |
| Ingress Protection: | IP65 |
| Recommended amplifier: | 25-50 W |
| Ci4-V transformer taps: | 70 V: 3,75, 7,5, 15 W 100 V: 7,5, 15 W |
| Measurements: | 400 x 190 x 145 mm 15.75 x 7.48 x 5.71 in |
| Weight: | 3,15 kg 6.94 lb |
| Sensitivity SPL / 1W @ 1m: | 88 dB |
| Maximum SPL, Long Term: | 107 dB |
| Maximum SPL, Peak: | 113 dB |
| Frequency response: | 55-20.000 Hz |
| Nominal impedance: | 8 Ω |
| Dispersion: | 100° vertical / 100° horizontal |
| Ingress Protection: | IP65 |
| Recommended amplifier | 50-100 W |
| Measurements: | 450 x 209 x 150 mm 17.72 x 8.23 x 5.91 in |
| Weight: | 2,85 kg 6.28 lb |
| Sensitivity SPL / 1W @ 1m: | 88 dB |
| Maximum SPL, Long Term: | 107 dB |
| Maximum SPL, Peak: | 113 dB |
| Frequency response: | 55-20.000 Hz |
| Nominal impedance: | 8 Ω |
| Dispersion: | 100° vertical / 100° horizontal |
| Ingress Protection: | IP65 |
| Recommended amplifier: | 45-90 W |
| Ci5-V transformer taps: | 70 V: 3,75, 7,5, 15, 30 W 100 V: 7,5, 15, 30 W |
| Measurements: | 450 x 209 x 150 mm 17.72 x 8.23 x 5.91 in |
| Weight: | 3,45 kg 7.61 lb |
| Sensitivity SPL / 1W @ 1m: | 88 dB |
| Maximum SPL, Long Term: | 108 dB |
| Maximum SPL, Peak: | 114 dB |
| Frequency response: | 30-240 Hz |
| Nominal impedance: | 8 Ω |
| Ingress Protection: | Indoor use only |
| Recommended amplifier: | 50-150 W into 8 Ω |
| Measurements with wall mount: | 530 x 374 x 190 mm 20.87 x 14.72 x 7.48 in |
| Weight: | 10,7 kg 23.59 lb |
| Sensitivity SPL / 1W @ 1m: | 95 dB |
| Maximum SPL, Long Term: | 120 dB |
| Maximum SPL, Peak: | 126 dB |
| Frequency response: | 45-600 Hz |
| Nominal impedance: | 8 Ω |
| Ingress Protection: | Indoor use only |
| Recommended amplifier: | 300-600 W into 8 Ω |
| Measurements with wall mount: | 649 x 445 x 220 mm 25.55 x 17.58 x 8.66 in |
| Weight: | 22,25 kg 49.05 lb |
Staying strong with our commitment to integration efficiency & simplicity, the Ci series features custom-tuned presets developed by our in-house loudspeaker team for a vast majority of installations. All presets are available at blaze-audio.com/support and can be easily loaded into our PowerZone™ Connect amplifiers via their built-in DSP controller, PowerZone™ Control.
Featuring one of the most intuitive built-in DSP controllers in the industry, PowerZone™ Connect amplifiers provide fast, easy access to configuration options, making them the go-to solution for system installers needing quick, hassle-free setup in commercial installations.
