Ci4-V

Passive, feature-packed, 2-way, full-range loudspeaker w/ switchable high-impedance mode

Features
  • 4″ woofer + 4” passive radiator.
  • 1″ silk dome tweeter.
  • Switchable 100/70V mode/8 Ω mode
  • IP65 rated.
  • Switchable limiting circuit for tweeter.
  • Triangular ABS cabinet.
  • Metal grille.
  • Mounts without brackets or with hidden sliders.
  • Hidden cable connection.
  • Screw terminals.
  • Couples together for 180° or 270° coverage.
  • Placement: Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling.
  • Compatible  with Blaze Audio’s C8S and C12S subwoofers.
  • Accessories: Ceiling suspension bracket / Half moon bracket / Slider mounting bracket (Slider mounting bracket incl. w. loudspeaker)
  • Designed in Denmark.
  • Available in black or white.
Specifications
Power handling, IEC268 60 W
Power handling, peak 240 W
Sensitivity, 2,83 V/1 m 86 dB
Maximum SPL, long term 105 dB
Maximum SPL, peak 113 dB
Frequency response 60-20.000 Hz
Nominal impedance 8 Ω
Dispersion 100° vertical / 100° horizontal
Recommended amplifier 30-80 W
Dimensions 400 x 190 x 145 mm
15.75 x 7.48 x 5.71 in
Weight 3,15 kg | 6.94 lb
+

4" woofer + 4" passive radiator

+

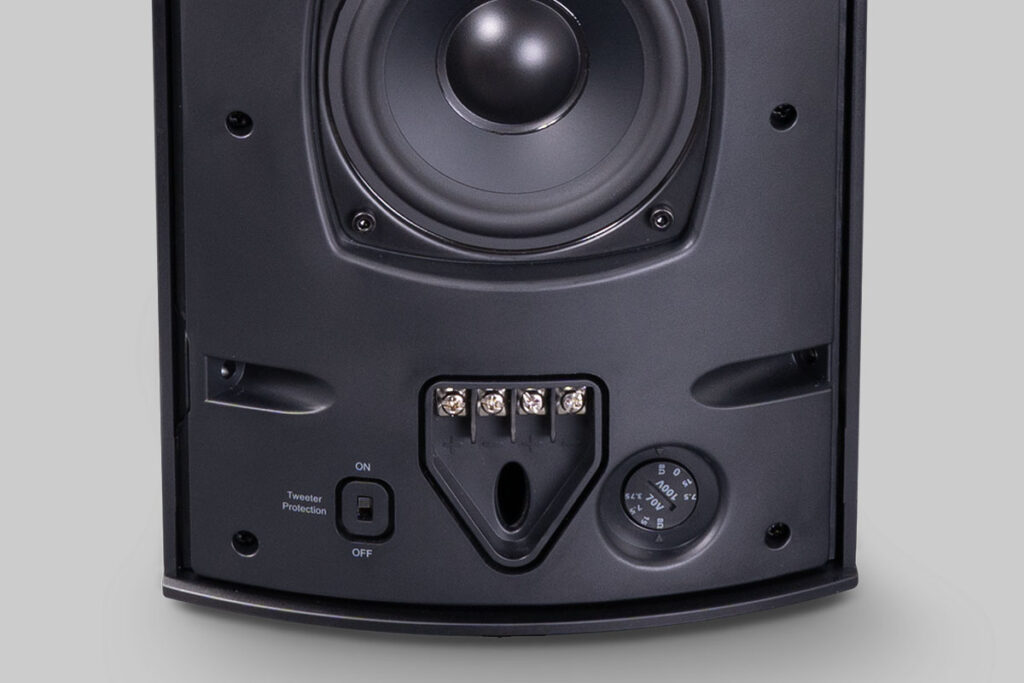

Switchable limiting circuit for tweeter

+

Screw terminal. Contacts will accept up to 4 sq. mm wire with an outside cable diameter of up to 20 mm.

+

Switchable 100/70V mode/ 8 Ω mode

+

1" silk dome tweeter.

Ci4-V: Passive, feature-packed, 2-way, full-range loudspeaker w/ switchable high-impedance mode

Ci4-V is similar to the Ci4, but with switchable high-impedance mode. In high-impedance mode, the Ci4-V has tap settings for 3,5 – 7,5 or 15 watt output conveniently located on the front baffle. Ci4-V is a feature packed compact 2-way full-range loudspeaker with medium output. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few loudspeakers, which makes the Ci4-V especially suited for in-door and outdoor commercial installations. It features an advanced passive woofer design which enables the compact cabinet to deliver full-range bass.

The patented triangular cabinet features integrated mounting points, allowing it to be flush-mounted in corners or onto walls and ceilings without the need for brackets. Additionally, with our new slider system, installation becomes a flexible and easy one-person task

Cabinets can be coupled together to increase coverage to 180° or 270° degree. The cable connection is invisible both in vertical and horizontal applications and the tweeter features a switchable protection circuit for added safety.

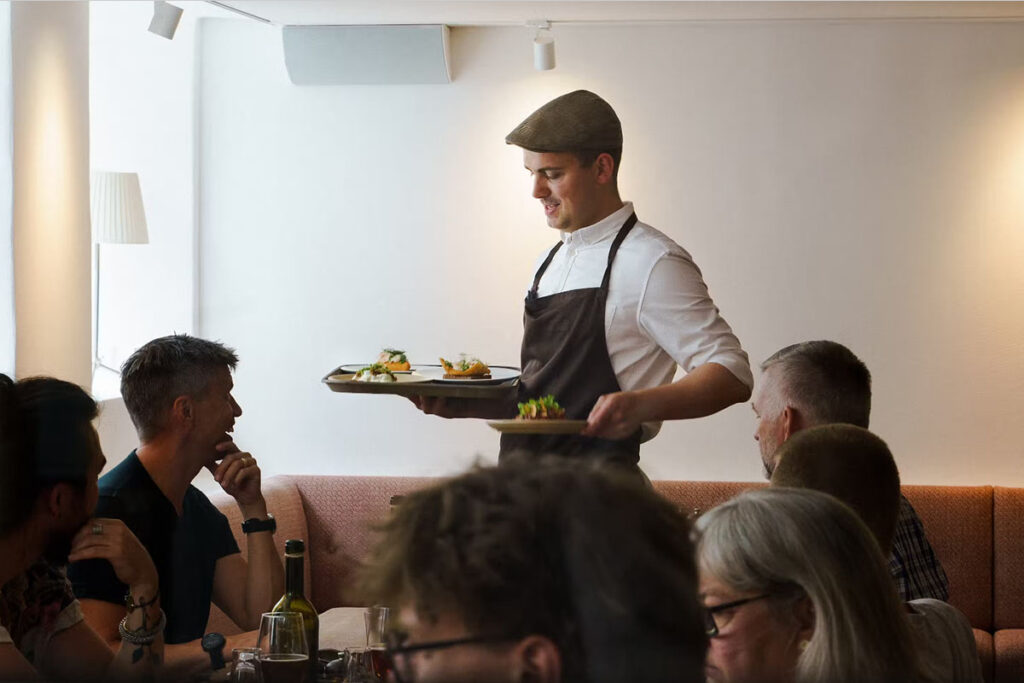

Ci4-V is the perfect aesthetic loudspeaker solution for background sound in commercial installations such as cafes, hotels and retail shops.

For enhanced bass performance, the Ci4-V can be teamed indoors with our C8S and C12S subwoofers.

Product Data

Additional information

Power handling, IEC268

60 W

Power handling, peak

240 W

Sensitivity, 2,83 V/1 m

86 dB

Maximum SPL, long term

105 dB

Maximum SPL, peak

111 dB

Frequency response

60-20.000 Hz

Nominal impedance

8 Ω

Dispersion

100° vertical / 100° horizontal

Measurements

450 x 209 x 150 mm <br>17.72 x 8.23 x 5.91 in

Weight

3,15 kg, 6.94 lb

Colour

Black, White
