Constant Curvature Array, Scalable 20° Vertical
Features
Specifications

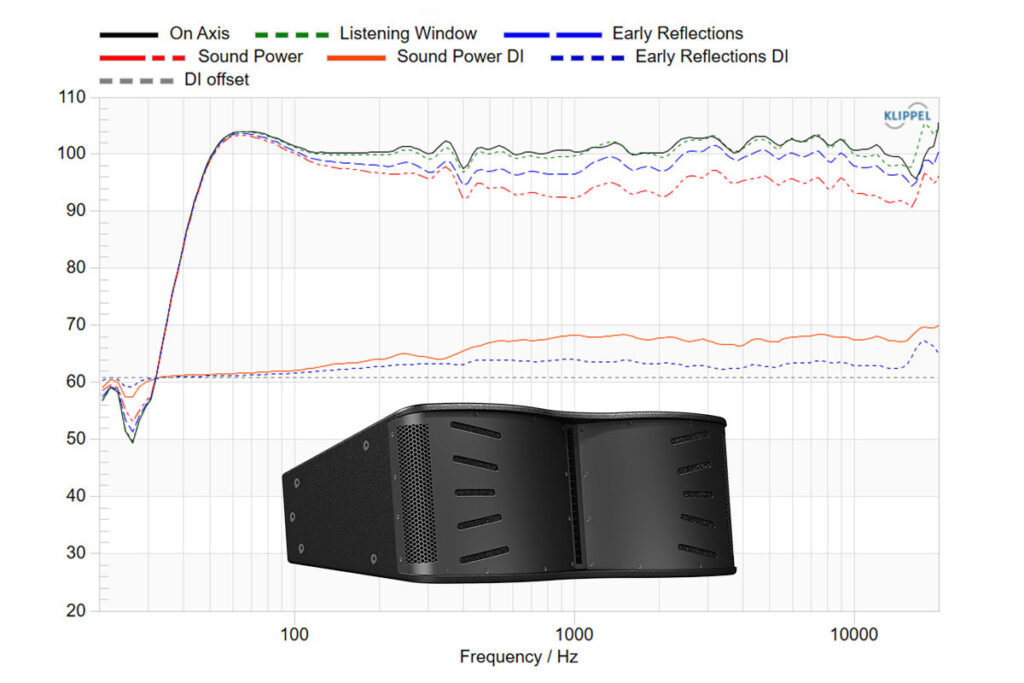

| Frequency Response (-3 dB)1 | 52 Hz – 18 kHz |
|---|---|
| Frequency Range (-10 dB)1 | 45 Hz – 18 kHz |
| Recommended High-Pass Filter | 48 Hz – w/ minimum 24 dB / Butterworth Filter |
| Horizontal Nominal Dispersion (-6 dB) | 160° |
| Vertical Nominal Dispersion (-6 dB) | 20° |
| Recommended Crossover Frequency | 420 Hz (acoustic, active, external DSP) |
| Long Term Power Handling (Low Freq.)2 | 600 W (2400 W peak) |
| Long Term Power Handling (High Freq.) 2 | 110 W (440 W peak) |
| Low Frequency Impedance | 4 ohms |
| High Frequency Impedance | 8 ohms |
| Pressure Sensitivity (Low Freq @ 1 W / 1 m)3 | 101 dB |
| Pressure Sensitivity (High Freq. @ 1 W / 1 m)3 | 111.4 dB |
| Max System SPL (@ 1 W / 1 m) | 131 dB SPL (140 dB SPL peak) |
| Colour | Black, White |
Description

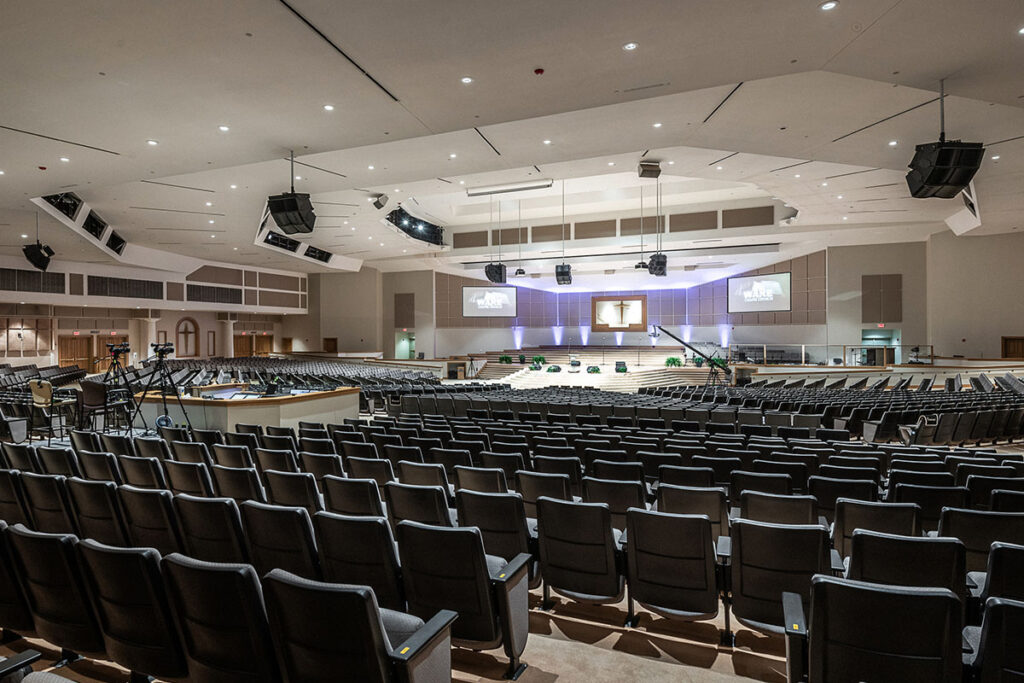

The CCA10i is a compact, arrayable point source loudspeaker designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution.
Mounted horizontally with tight acoustic centers to minimize comb filtering, each CCA10i enclosure provides a fixed 20° vertical coverage and can be flown with additional enclosures in vertical arrays.
Featuring a coaxial compression driver that uses separate midrange and high-frequency polymer ring-shaped diaphragms, the compression driver delivers an extremely wide response from 420 Hz to 18,000 Hz.
Two 10” high-excursion ultra-low distortion drivers offer reduced power compression, providing efficient and accurate bass reproduction down to 52 Hz.
