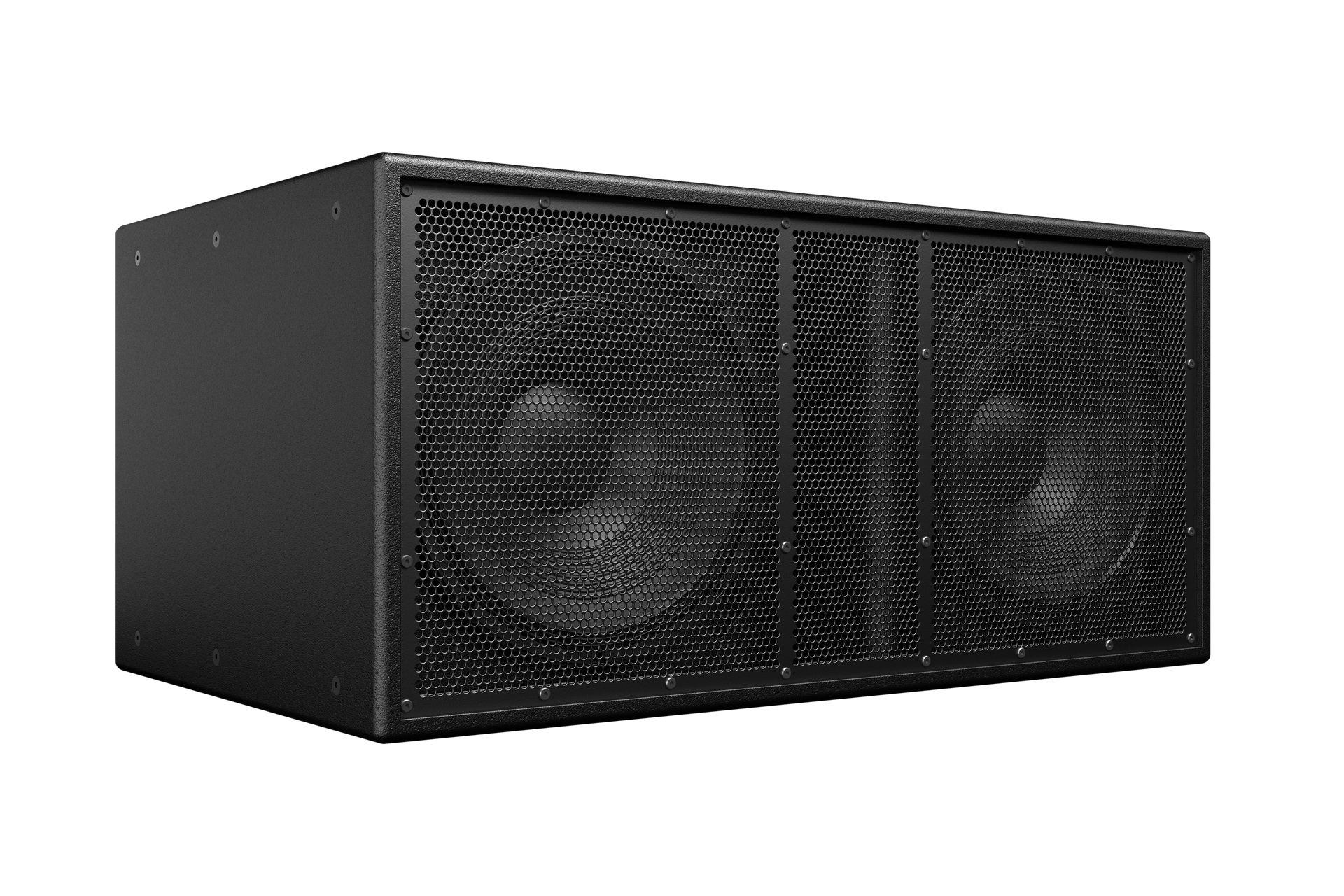

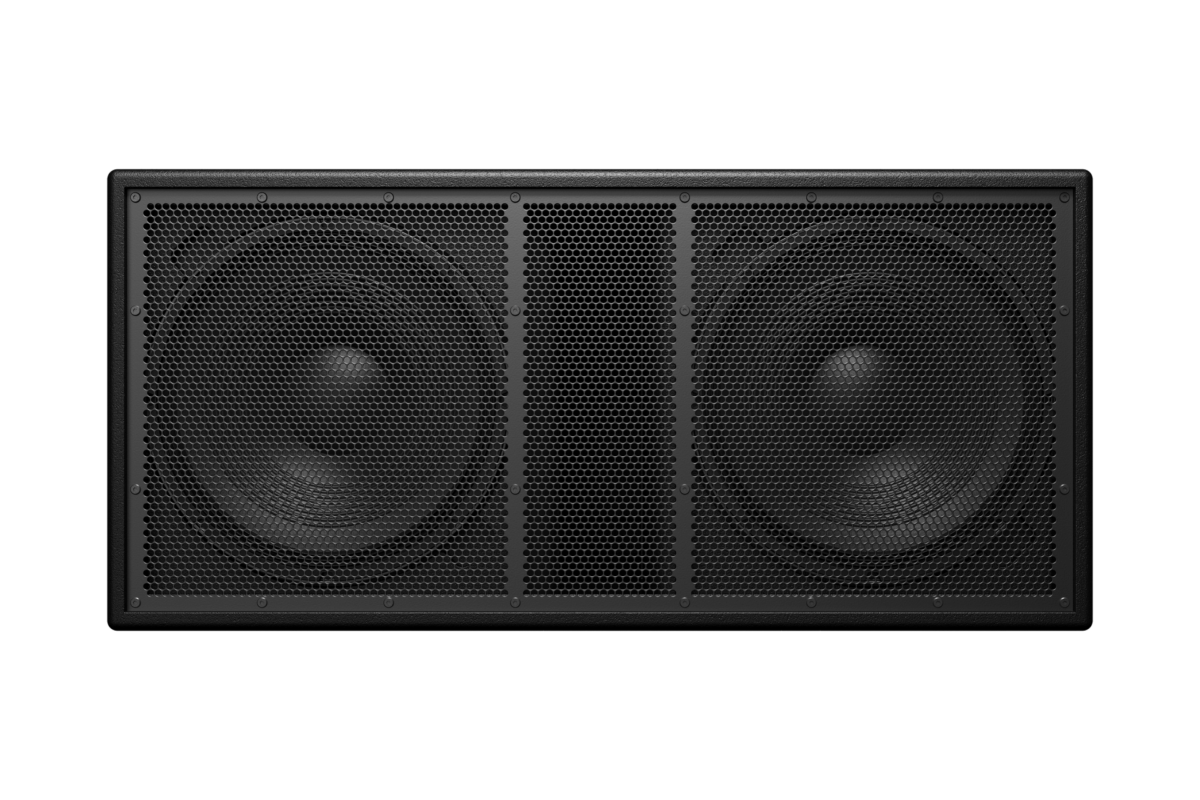

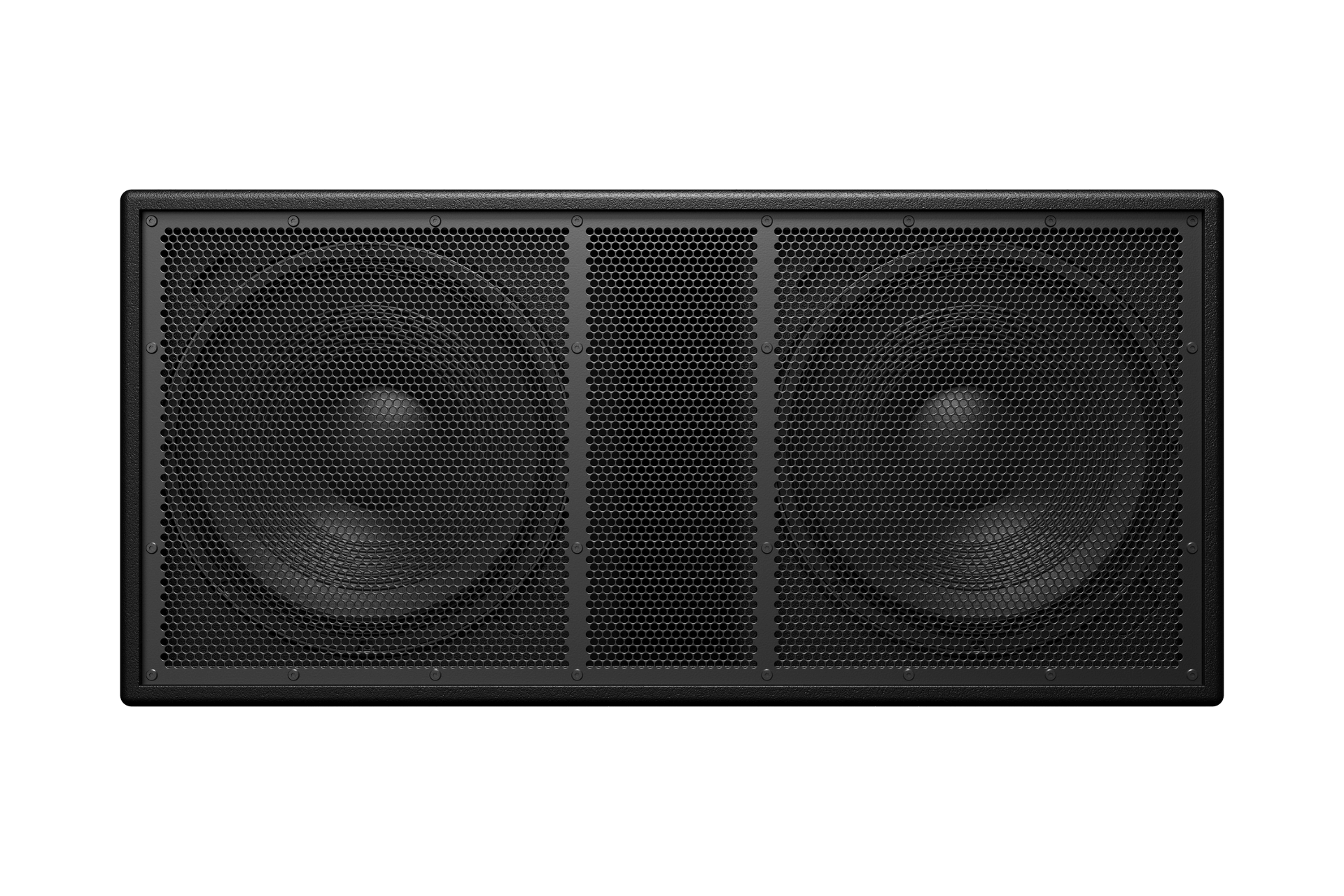

BL218iSS

Features
  • 5000W of stunning low-end response
  • Symmetrical dispersion pattern.
  • The Blaze BL218SS is designed to satisfy the need for an extreme high SPL sub bass loudspeaker system.
  • Components have been selected solely for their performance.

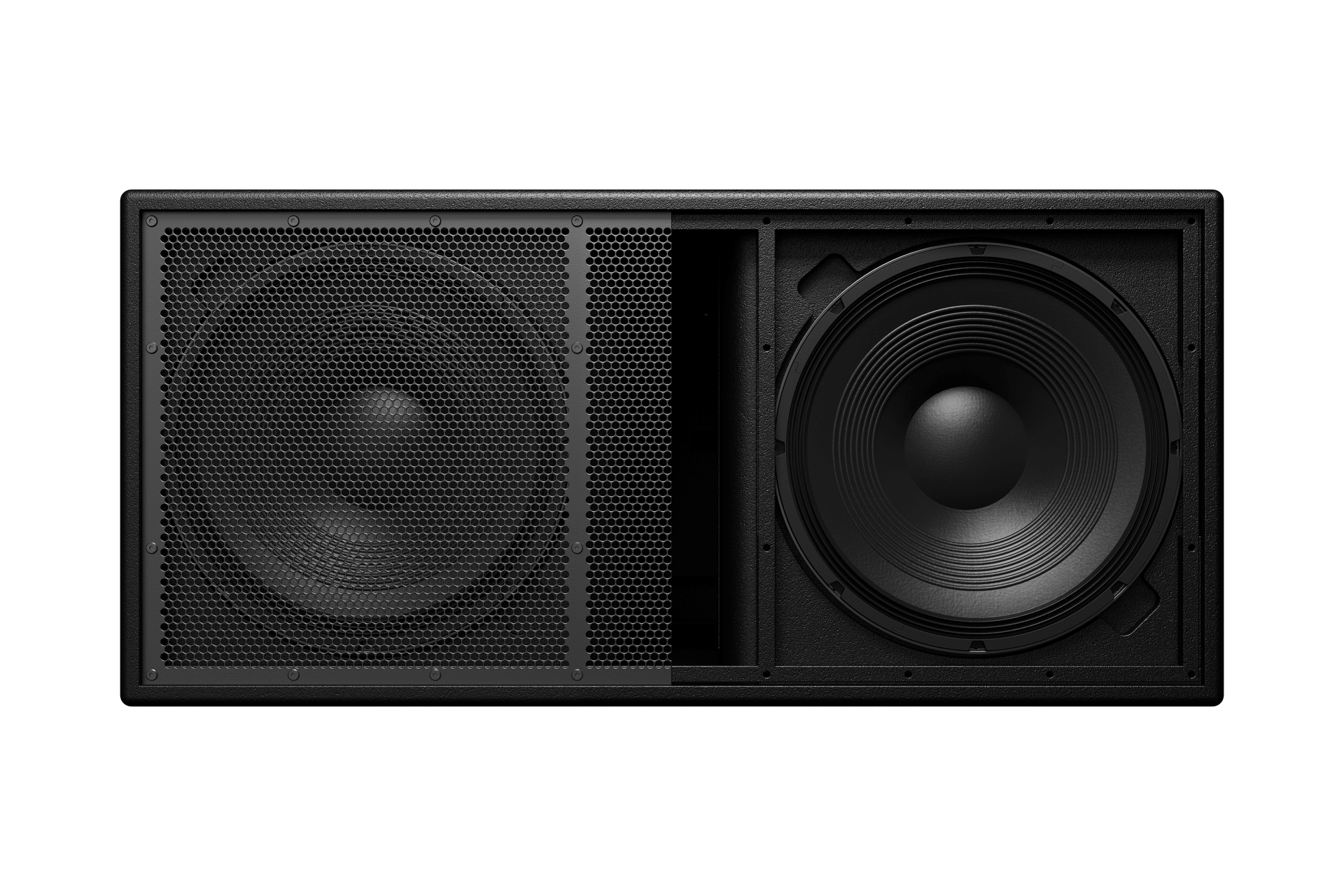

  • The Blaze BL218SS utilizes two direct radiating 18-inch, 2500W cone driver in a tuned enclosure, which provides maximum output with minimal distortion and smooth extended low frequency response.
  • The tour-tested 21 ply Baltic Birch highly braced enclosure and 24 mm thick baffle board construction provide unsurpassed rigidity and strength.
  • Configurable as in cardioid, or end-fire arrays.
  • Full integration with Blaze Power Zone Connect 3004 amplifiers.
Specifications
Frequency Response (-3 dB)* 25 Hz – 150 Hz
Frequency Range (-10 dB) 18 Hz – 150 Hz
Recommended High-Pass Filter 20 Hz – with minimum 24 dB / octave (4th order) Butterworth slope
Nominal Directivity (-6 dB) Omni or cardioid
Recommended Crossover Frequency 90 Hz (acoustic, active, external DSP)
RMS Handeling Capcity** LF: 5000W
Maximum SPL @ 1 Meter*** 143 db (Blaze Audio preset)

*Frequency response and range measured on-axis with anechoic environment. ** Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ. *** Peak level measured at 1m under free field conditions using 10 dB crest factor pink noise with specified ([Blaze Audio] preset) and corresponding EQ settings.
