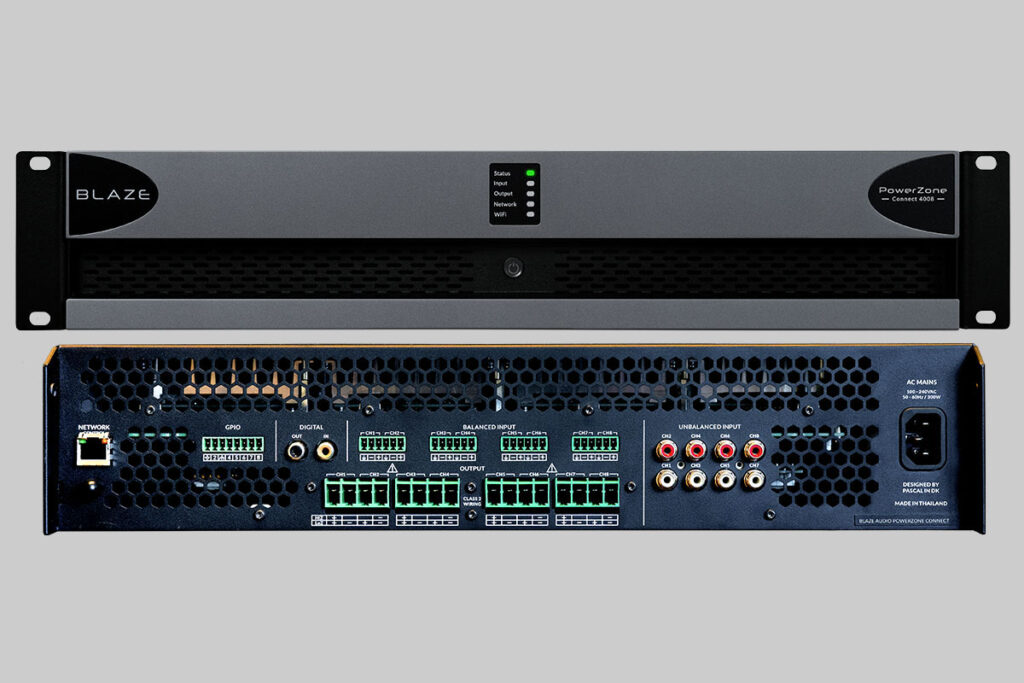

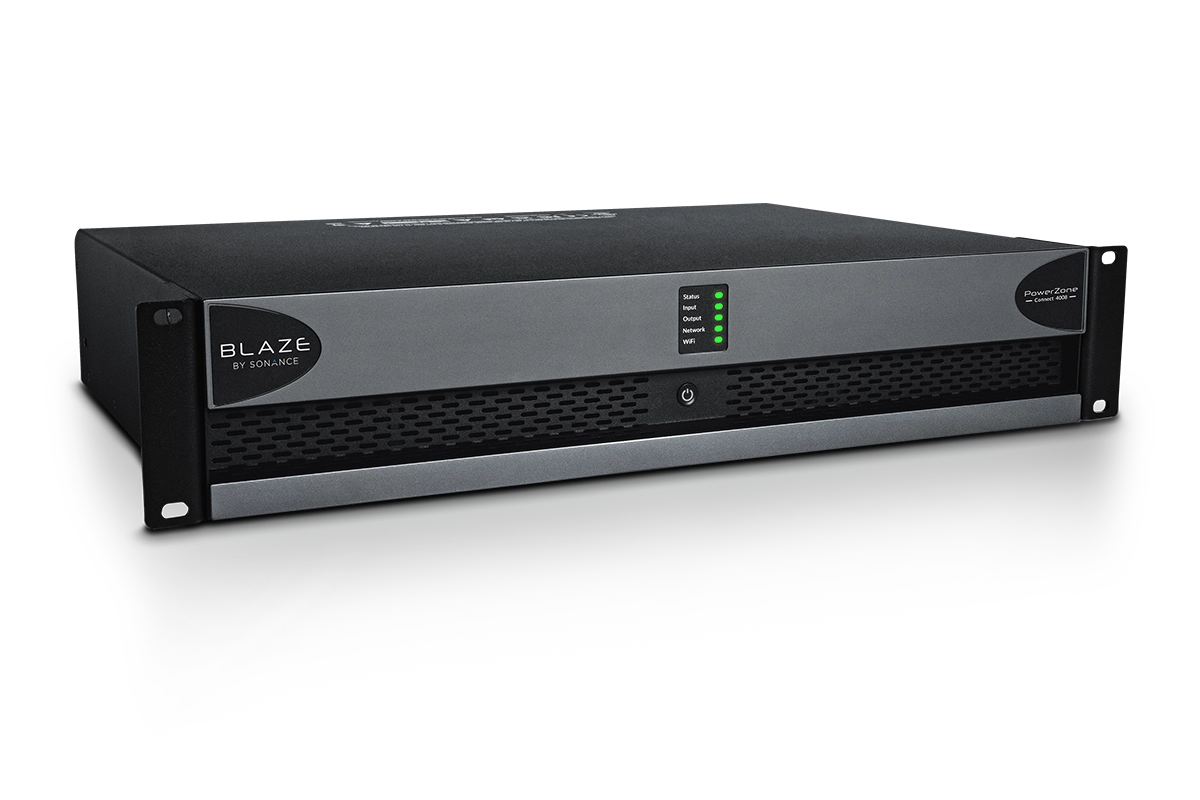

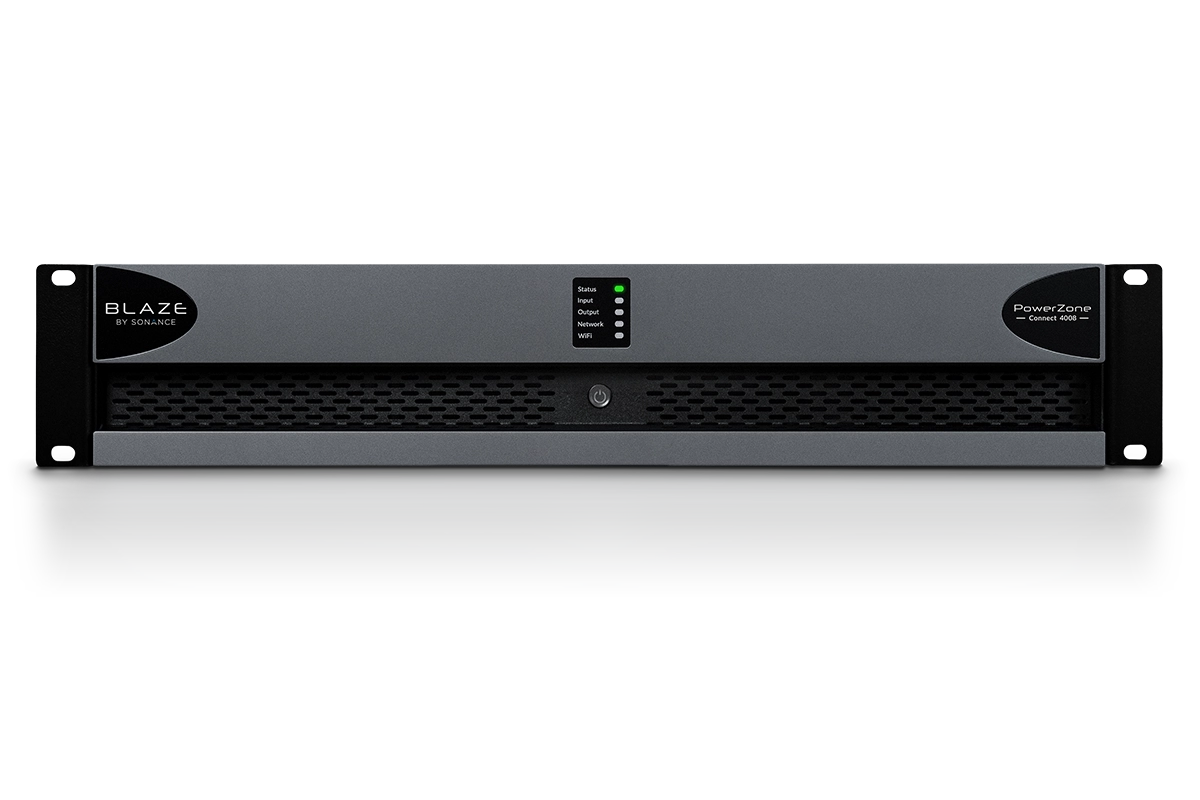

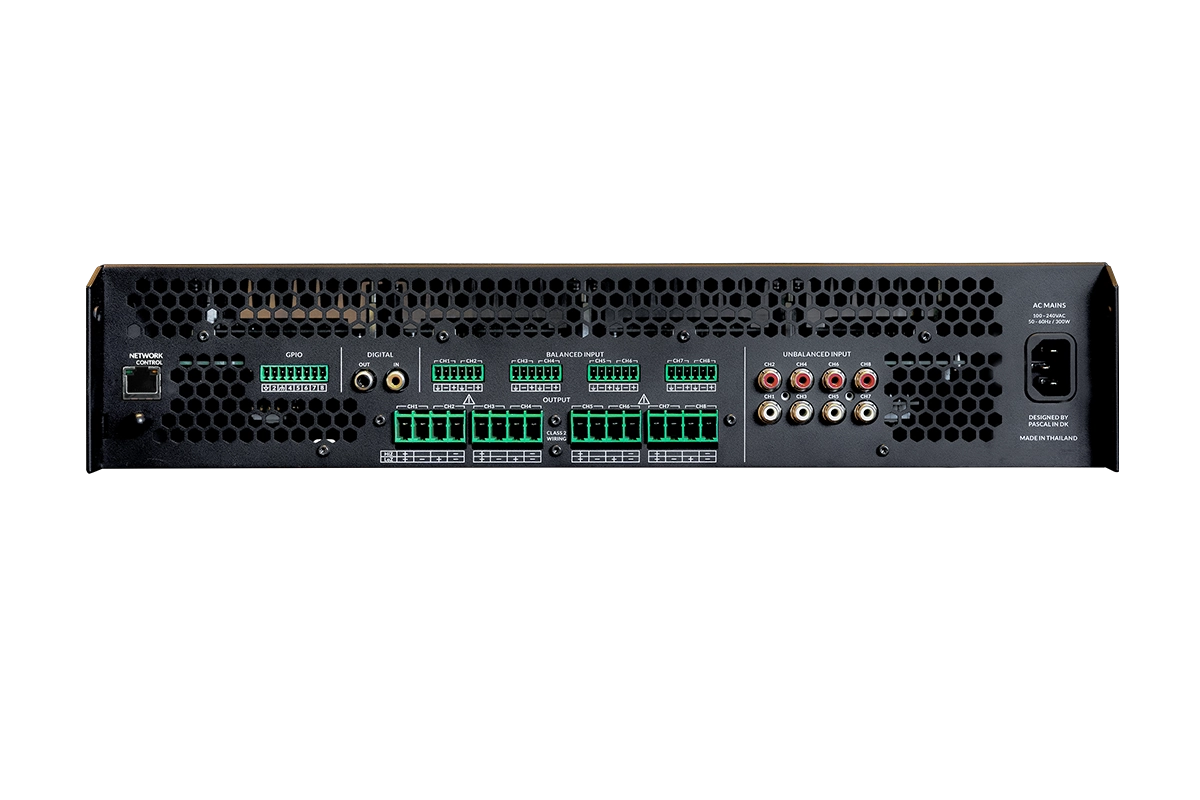

PowerZone™ Connect 4008

4000 W DSP-enabled Class-D amplifier with 8 channels

Features
  • Full rack 2U form factor
  • Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
  • Hybrid power distribution in both Lo-Z and Hi-Z
  • Powered by Pascal UMAC™ Class-D technology
  • UREC™ universal power supply with PFC
  • S/PDIF input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • UL listed audio equipment
  • 5 Year warranty
Specifications
Channels 8 x Lo-Z/4 x Hi-Z
Output Power @ 2 Ω 8 x 500 W (SE)
Output Power @ 4 Ω 8 x 500 W (SE)
4 x 1000 W (BTL)
Output Power @ 8 Ω 8 x 250 W (SE)
4 x 1000 W (BTL)
Output Power @ 70 V 4 x 1000 W (BTL)
Output Power @ 100 V 4 x 1000 W (BTL)
Total System Power 4000 W
try web app
Datasheet
